Model #:
RGV2-488-N_N
Color:
Stainless Steel

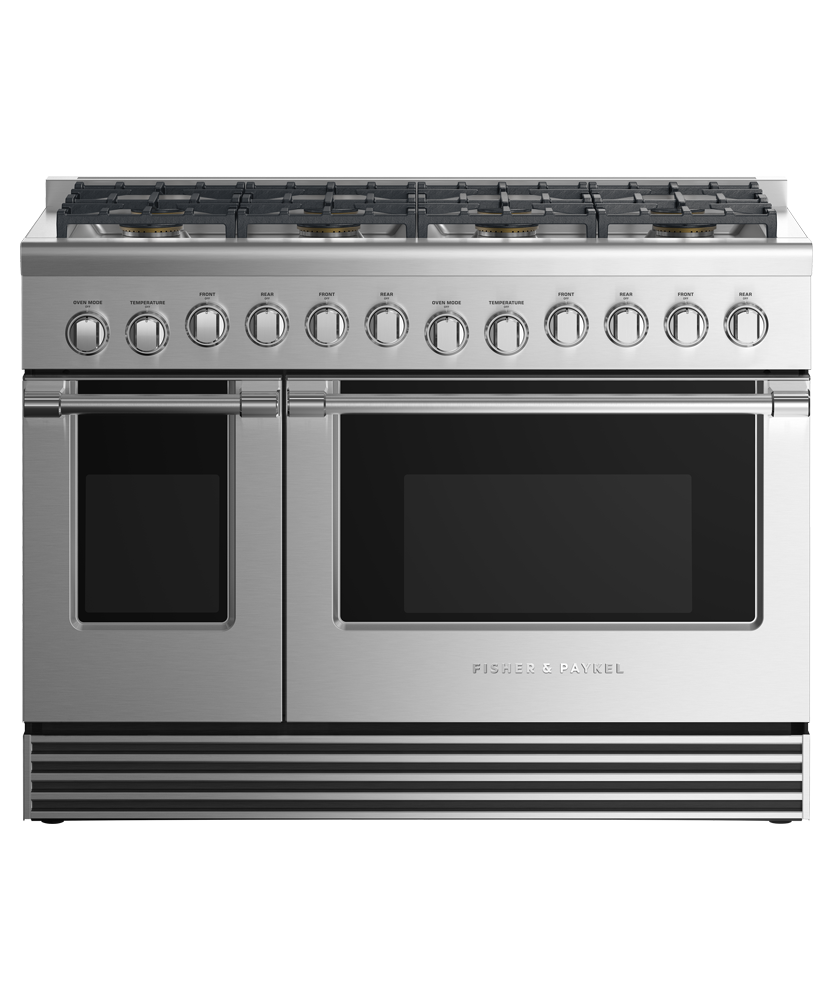

48" Series 7 Professional 8 Burner Gas Range, Natural Gas
48" Series 7 Professional 8 Burner Gas Range, Natural Gas
Dimensions
Height: 35 3/4 - 36 3/4"
Width: 47 7/8"
Depth: 29 1/8"
Color
Stainless Steel
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
- Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- The Gas Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
Product Description
Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.
Rebates
Specification
| Accessories (sold separately) | |
| Square handle option | AH-R48 |
| Burner ratings | |
| Maximum burner power | 23500 BTU |
| Power back centre | 18500BTU |
| Power back centre (2) | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front centre (2) | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 23500BTU |
| Total cooktop power | 158000 BTU |
| Capacity | |
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | true |
| Gas requirements | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Oven features | |
| Auto re-ignition system | true |
| Internal light | true |
| Oven performance | |
| Main oven - Bake power | 28,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Power requirements | |
| Amperage | 15A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8" |
| Height | 35 3/4 - 36 3/4" |
| Width | 47 7/8" |
| Rangetop features | |
| Sealed range top | true |
| Vent trim included | true |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
| Safety | |
| ADA compliant | true |
| Full extension telescopic sliding shelves | true |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Electronic oven control | true |
| Internal light | true |
| Secondary oven functions | |
| Bake | true |
| Number of secondary oven functions | 2 |
| Proof | true |
Documentation
From the Manufacturer
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
- Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- The Gas Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
