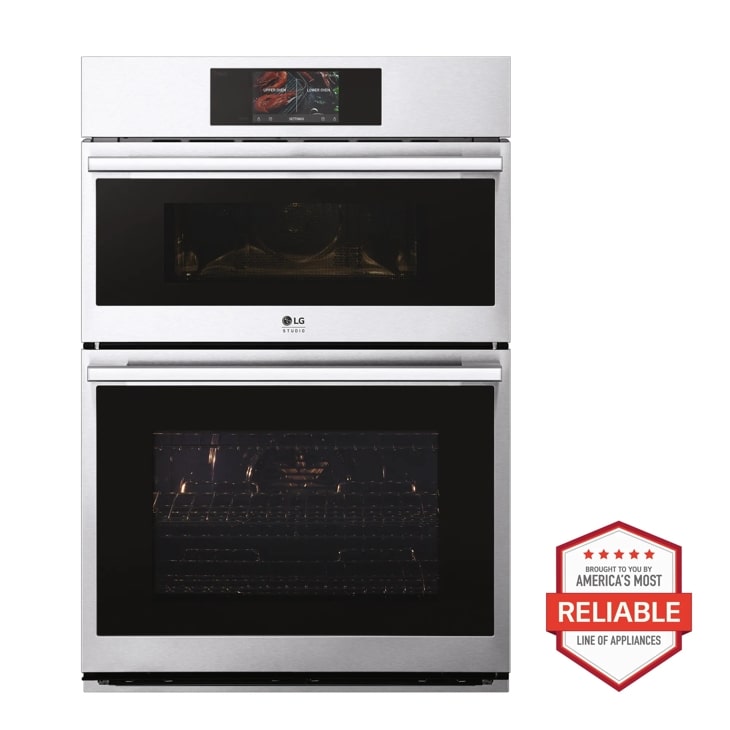

LG STUDIO 1.7/4.7 cu. ft. Combination Double Wall Oven with Air Fry
LG STUDIO 1.7/4.7 cu. ft. Combination Double Wall Oven with Air Fry
Dimensions
Width: 29.75
Height: 43.81
Depth: 24.47
Color
Stainless Steel
Features
- 6.4 cu. ft. capacity lets you impress with your cooking skills—no matter how big the guest list
- InstaView® Window puts the ultimate spotlight on your next big dish
- ProBake Convection® with Air Fry & Air Sous Vide let you tap into new creative cooking techniques
- EasyClean® + Self Clean Performance make it easy to keep your kitchen looking its best
- ThinQ® Technology with ThinQ Care gives extra peace of mind
Product Description
LG STUDIO 1.7/4.7 cu. ft. Combination Double Wall Oven with Air Fry
Specification
APPEARANCE | |
Color & Material | Stainless / Enamel Coating |
Handle | Stainless Steel |
Oven Door Feature | InstaView® & WideView™ Window |
All Available Colors | Stainless Steel |
PrintProof™ Finish | Yes |
CAPACITY | |
Lower Oven Capacity (cu. ft.) | 4.7 cu.ft. |
Total Capacity | 6.4 cu.ft. |
Upper Oven Capacity (cu. ft.) | 1.7 cu.ft. |
CONTROLS | |
Oven Control Type | TFT LCD Film Touch + Glass Touch |
Clock | 12 hr or 24 hr (option) |
Cooking Complete Reminder Volume | 1. High 2. Low 3. Mute |

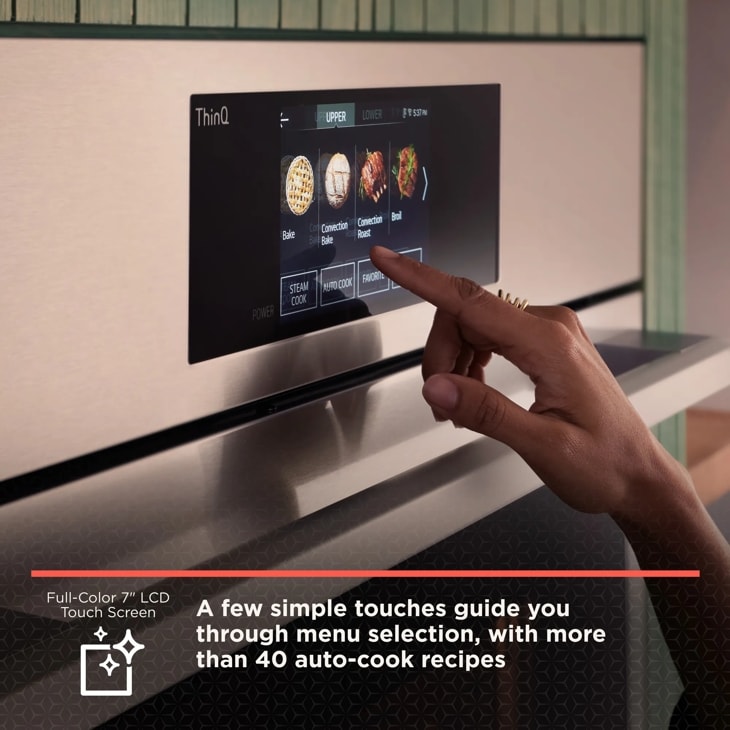

Display | 7" TFT LCD |
Automatic Safety Shut-Off | After 12 hours |
Temperature Unit of Measure | Celsius, Fahrenheit |
Language | English, French, Spanish |
Sabbath Mode | Yes |
Kitchen Timer | Yes |
Timed Cook | Yes |
COOKING APPLIANCE THINQ® SMART FEATURES | |
3rd Party Recipe App | Innit, Sidechef |
ThinQ Care™ | Yes |
Wi-Fi Connectivity | Yes |
SmartDiagnosis™ | Yes |
ThinQ® Smart Technology | Yes |
Check & Control | Yes |
DIMENSIONS/CLEARANCES/WEIGHT | |
Oven Interior Dimensions (Upper) (in) (W x H x D) | 20 8/11" x 8 9/25" x 17 5/13" |
Carton Dimensions (in) (W x H x D) | 33" x 50" x 30" |
Oven Interior Dimensions (Lower) (in) (W x H x D) | 24 1/2" x 17 5/8" x 18 7/8" |
Product Weight (lbs) | 204 lbs |
Shipping Weight (lbs) | 239 lbs |
LOWER OVEN FEATURES | |
# of lights | 5 |
OVEN FEATURES | |
Convection (Watt) | 2,000 watts (Sheath heater) |
Bake element type | Hidden (8 pass) |
Convection Type | True Convection |
Oven Modes | Bake, Conv. Bake, Conv. Roast, Broil High,Broil Low, Warm, Proof, Air fry, Air sous-vide, Frozen Meal, EasyClean, SelfClean |
Oven Light | 2 Halogen |
Convection Fan | Single Speed |
Bake Element | 2,500 watts |
Broil Element | 2,500W Inner / 1,500W Outer |
Self Clean | Yes |
Proof | Yes |
Variable cleaning time | Yes |
Convection Conversion | Yes |
Variable broil | Yes |
Variable warm | Yes |
POWER/RATINGS | |
Electric Supply | 240V/208V, 60Hz AC |
Energy Requirements | 60 Hz / 240 V, 208 V |
Max. Amp Load | 40a |
Rating | 7.8kw |
SUMMARY | |
Type | Combi Wall Oven |
LG STUDIO | Yes |
UPPER OVEN FEATURES | |
Speed cook - # of Soften (4 Menu) | Butter / Cream Cheese / Frosting / Ice Cream |
Speed cook - # of Auto cook (28 Menu) | Bacon (regular sliced) / Bagels (frozen) / Baked potatoes (7-9oz/ea) / Brownie / Cod fillets (1 lb) / Corn dog (frozen) / Fresh vegetable / Frozen chicken wings / Frozen fries / Frozen chicken nuggets / Frozen pizza (regular crust) / Frozen soft pretzels |
Speed cook - # of Melt (5 Menu) | Butter / Caramel / Cheese / Chocolate / Marshmallow |
Convection element | 1600W |
Broil Element | 1200W (500W Infrared Heating™ + 700W Miraclon heater) |
Speed cook - # of Defrost (4 Menu) | Meat / Poultry / Fish / Bread |
Speed cook - # of Sensor cook (9 Menu) | Beverage / Casserole / Chicken / Pasta / Pizza / Plate of food / Rice / Soup / Vegetable |
Speed cook | Yes |
Broil | Yes |
Broil element pass | 2 |
Microwave mode power consumption | 1650 W |
Convection Bake | Yes |
Microwave Power output | 950 W |
Bake Element | 375 W |
Microwave | Yes |
VENTING SYSTEM | |
Exhaust Grease Filter | 1 |
WARRANTY/UPC | |
Parts & Labor | 2 Years |
UPC | 195174024133 |
